3C905C-TX and 3C905C-TX-M

EtherLink 10/100 PCI NICs for

Complete PC Management

Part No. 09-1487-000 OEM

Published March 1999

Book Page 1 Friday, March 19, 1999 11:21 AM

3Com Corporation

■

5400 Bayfront Plaza

■

Santa Clara, California

■

95052-8145

reproduced in any form or by any means or used to make any derivative work (such as translation,

transformation, or adaptation) without written permission from 3Com Corporation.

3Com Corporation reserves the right to revise this documentation and to make changes in content

from time to time without obligation on the part of 3Com Corporation to provide notiﬁcation of such

revision or change.

3Com Corporation provides this documentation without warranty, term, or condition of any kind,

either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of

merchantability, satisfactory quality, and ﬁtness for a particular purpose. 3Com may make improvements

or changes in the product(s) and/or the program(s) described in this documentation at any time.

If there is any software on removable media described in this documentation, it is furnished under a

license agreement included with the product as a separate document, in the hard copy documentation,

or on the removable media in a directory ﬁle named LICENSE.TXT or !LICENSE.TXT. If you are unable to

locate a copy, please contact 3Com and a copy will be provided to you.

UNITED STATES GOVERNMENT LEGEND

If you are a United States government agency, then this documentation and the software described

herein are provided to you subject to the following:

All technical data and computer software are commercial in nature and developed solely at private

expense. Software is delivered as “Commercial Computer Software” as deﬁned in DFARS 252.227-7014

(June 1995) or as a “commercial item” as deﬁned in FAR 2.101(a) and as such is provided with only such

rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided

with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987),

whichever is applicable. You agree not to remove or deface any portion of any legend provided on any

licensed program or documentation contained in, or delivered to you in conjunction with, this guide.

Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or

may not be registered in other countries.

3Com, the 3Com logo, EtherDisk, and EtherLink are registered trademarks of 3Com Corporation.

Microsoft and Windows are trademarks of Microsoft Corporation.

All other company and product names may be trademarks of the respective companies with which

they are associated.

Book Page 2 Friday, March 19, 1999 11:21 AM

Introduction

This quick guide explains how to install a 3Com

EtherLink

10/100 PCI for Complete PC Management

(3C905C) network interface card (NIC) in a PC running

Microsoft Windows 95 or Windows 98.

For all other operating systems, or for more detailed

information on the 3C905C NIC, see the

EtherLink 10/100 PCI

for Complete PC Management Network Interface Card

User Guide

Installation Overview

Before you physically install the NIC in a PC, you

must run the NIC preinstallation program, located on

EtherDisk

diskette 1, to prevent conﬂicts with the NIC.

CAUTION:

If you do not run the preinstallation program,

the NIC driver and software will not be installed correctly.

See “Running the Preinstallation Program” later in this

quick guide for instructions.

Make sure that you have the following items:

■

3C905C NIC

■

3Com

EtherDisk

diskettes 1, 2, and 3

■

Remote Wake-Up cable (This cable is optional. Install

it only if you want to use Remote Wake-Up and your

PC is not compliant with PCI 2.2. Contact your PC

manufacturer for the Remote Wake-Up cable.)

■

SOS or SMBus cable (This cable is optional. Install it only if

you want to use remote system alerts and your PC has a

matching connector on its motherboard. Contact your PC

manufacturer for cabling and installation instructions.)

Book Page 3 Friday, March 19, 1999 11:21 AM

THER

INK

10/100 PCI

FOR

OMPLETE

PC M

ANAGEMENT

NIC

UICK

UIDE

Installing Multiple NICs

If you are installing multiple 3C905C NICs in a PC or server,

follow the instructions in “Installing Multiple NICs” in

Chapter 3 of the user guide. Do

not

follow the instructions

in this quick guide.

Upgrading Windows 95 to Windows 98

If you are upgrading a PC from Windows 95 to

Windows 98 that already has a 3C90x NIC installed,

follow the instructions in the WIN98.TXT ﬁle located

in the HELP directory on

EtherDisk

diskette 3.

Updating

EtherDisk

Software

If you want to update your current version of

EtherDisk

software

EtherDisk

5.x software, follow the instructions

in the text ﬁle appropriate for your operating system in the

HELP directory on

EtherDisk

diskette 3.

Running the Preinstallation Program

Before you physically install the NIC in a PC, you must run

the following preinstallation program to properly set up

your system environment.

CAUTION:

If you do not perform this procedure, the NIC

driver and software will not be installed correctly.

To run the NIC preinstallation program:

1 Do not install the NIC in the PC.

2 Turn on the power to the PC and start Windows.

3 Insert

EtherDisk

diskette 1 in drive A.

4 From the Windows

Start

menu, select

Run

5 Run the preinstallation program. Enter:

a:\preinstl

6 After the preinstallation program ﬁnishes, turn off

the power to the PC.

The next step is to install the NIC in the PC.

Book Page 4 Friday, March 19, 1999 11:21 AM

Installing the NIC

To install the NIC in the PC:

1 Make sure that you have run the preinstallation

program, as described in the previous section.

CAUTION:

Before handling the NIC, touch the bare metal

case of your PC to discharge static electricity from your

body. While you are handling the NIC, wear a wrist strap

grounded to the PC chassis.

2 Remove all jewelry from your hands and wrists. Use

only insulated or nonconducting tools.

3 Make sure that the power to the PC is turned off and

that the power cord is unplugged.

4 Remove the cover from the PC.

5 Locate an empty, nonshared bus mastering PCI slot

and remove the corresponding slot cover. Save

the screw.

Do not install the NIC in a

shared

PCI slot. Avoid any

PCI slot next to an ISA slot. This is often a shared slot

and does not support bus mastering.

If you do not know how to identify a PCI slot, check your

PC documentation or ask your system administrator.

If you are planning to install the Remote Wake-Up cable or

a cable for the SOS or SMBus connector, choose an empty

PCI slot that is close to the matching connector on the

PC motherboard.

6 Carefully insert the NIC into the empty PCI slot (see

Figure 1). Press ﬁrmly to ensure that the NIC is fully

seated in the slot.

Book Page 5 Friday, March 19, 1999 11:21 AM

THER

INK

10/100 PCI

FOR

OMPLETE

PC M

ANAGEMENT

NIC

UICK

UIDE

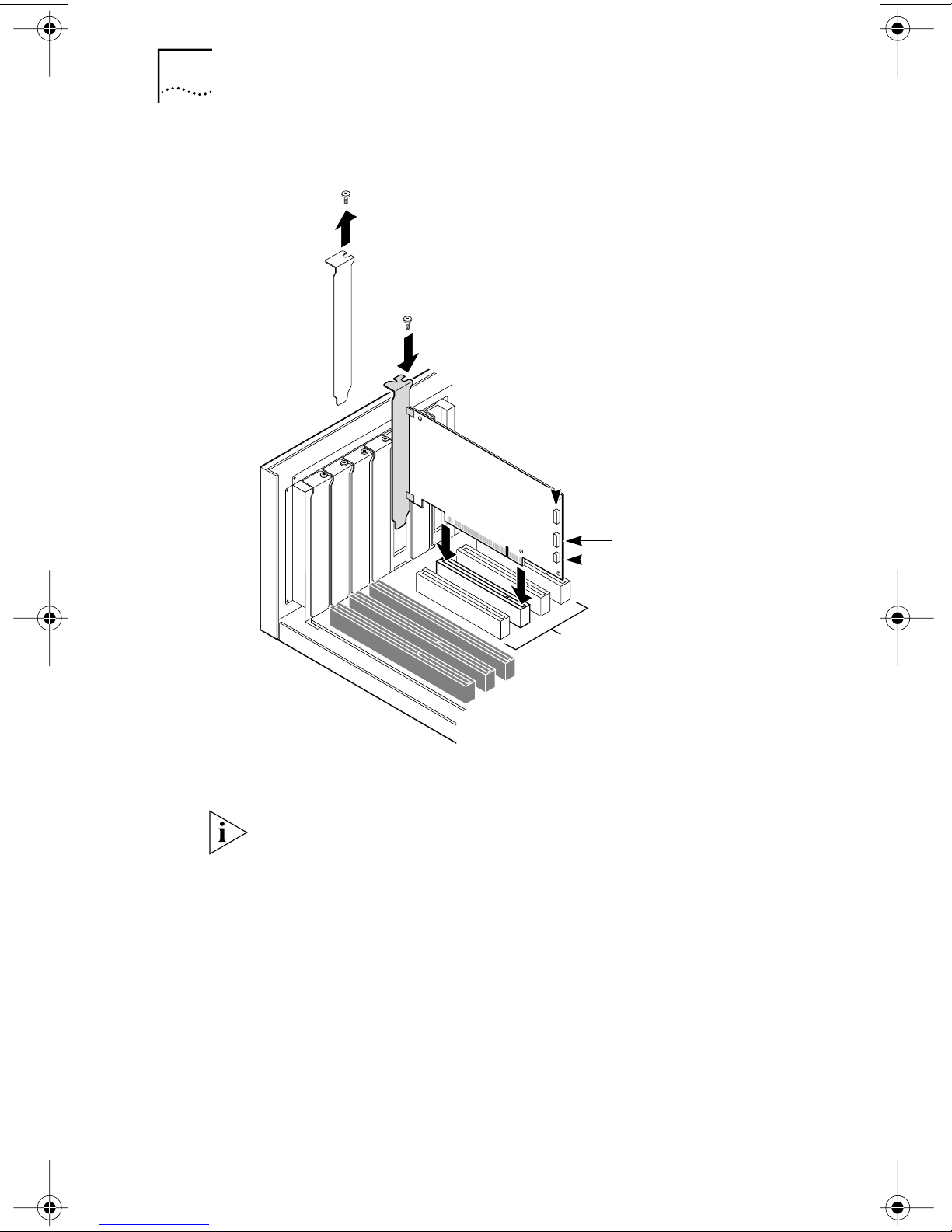

Figure 1

Installing the NIC

7 Secure the NIC with the screw you removed in step 5.

If you want to connect the Remote Wake-Up cable, see

“Connecting the Remote Wake-Up Cable” in Chapter 2

of the user guide to continue the installation.

If you want to connect a cable from the SOS or

SMBus connector, see your PC documentation

or contact your PC manufacturer for instructions.

If you do not want to connect a cable, continue

with step 8.

8 Replace the PC cover and plug in the power cord.

Do not turn on the power to the PC.

1 Remove slot cover

2 Insert NIC

PCI slots

Remote Wake-Up

(RWU) connector

SOS pin connector

System Management

Bus (SMB) connector

Book Page 6 Friday, March 19, 1999 11:21 AM

Installing the Driver and Software

9 Connect the appropriate network cable to the RJ-45

port on the NIC, following the speciﬁcations in the

table below.

The next step is to install the NIC driver and software.

Installing the Driver and Software

This section describes how to install the NIC driver and

software on a PC running Windows 95 or Windows 98.

For other operating systems, see the user guide.

Windows 95

To install the NIC driver and software under Windows 95,

you need the Windows 95 installation ﬁles. These ﬁles

may be on a CD or diskettes, or they may have been copied

to your hard drive when Windows 95 was installed on

your PC.

If you encounter problems during the installation, see

the W95NDIS.TXT ﬁle located in the HELP directory on

EtherDisk

diskette 3 for troubleshooting tips.

Before installing the NIC driver and software:

■

Make sure that you have run the preinstallation

program, as described earlier in this guide.

■

Make sure that the NIC is installed in the PC and

that it is connected to the network.

To install the NIC driver and software on a PC running

Windows 95:

1 Turn on the power to the PC.

Windows 95 detects the NIC. Depending on the version of

Windows 95 that you have installed, the New Hardware

Found dialog box appears or the Update Device Driver

Wizard starts.

Network

Environment Cable Required

Maximum

Cable Length

10 Mbps

(10BASE-T)

Category 3, 4, or 5

unshielded twisted-pair

100 m (328 ft)

100 Mbps

(100BASE-TX)

Category 5 unshielded

twisted-pair

100 m (328 ft)

Book Page 7 Friday, March 19, 1999 11:21 AM

THER

INK

10/100 PCI

FOR

OMPLETE

PC M

ANAGEMENT

NIC

UICK

UIDE

If the New Hardware Found dialog box appears:

Select

Driver from disk provided by hardware

manufacture

r, and then click OK.

bInsert EtherDisk diskette 1 in drive A, make sure that

A:\ appears in the entry box, and then click OK.

cGo to step 2 when prompted for EtherDisk diskette 2.

If the Update Device Driver Wizard starts:

aInsert EtherDisk diskette 1 in drive A, and then

click Next.

Windows ﬁnds the driver and asks if you want to

use this driver.

bClick Finish, and then click OK when prompted for

EtherDisk diskette 1.

cGo to step 2 when prompted for EtherDisk diskette 2.

2 Remove EtherDisk diskette 1 from drive A, insert

EtherDisk diskette 2, and then click OK.

Files are copied.

■If this is the ﬁrst time that networking is being installed

on your PC, the Identiﬁcation tab of the Network screen

appears. Go to step 3.

■If networking has already been installed, you are

prompted for the Windows 95 CD. Go to step 4.

3 In the speciﬁed ﬁelds of the Identiﬁcation tab screen,

enter the following information, and then click OK:

■Computer Name — Identiﬁes the PC on the network

for other users. This entry must be a unique name of

15 characters or fewer, containing no spaces.

■Workgroup — Identiﬁes the group (for example, your

department name) to which your PC belongs. If you

belong to a peer-to-peer network, this entry must be

exactly the same for all the PCs in your network.

■Computer Description — Displays additional details to

other users on the network about this PC. For example,

you could specify that the PC has a printer attached.

Filling in this ﬁeld is optional.

Book Page 8 Friday, March 19, 1999 11:21 AM

Installing the Driver and Software 9

4 Insert the Windows 95 CD or diskette, and then click OK.

If you do not have the Windows 95 CD or diskette, but the

Windows 95 installation ﬁles are on your hard drive, click

OK. Enter the directory in the Copy Files From entry box

(usually C:\WINDOWS\OPTIONS\CABS), and then click OK.

Files are copied. You are prompted for EtherDisk diskette 2.

5 Make sure that EtherDisk diskette 2 is in drive A, and

then click OK.

Files are copied. You are prompted to restart the PC.

6 Remove EtherDisk diskette 2 from drive A, and then

click Yes to restart the PC.

You must restart the PC to complete the installation.

The installation is complete. Go to “Verifying Successful

Installation” later in this guide to conﬁrm that the NIC is

properly installed.

After Windows restarts, double-click the Network icon

in the Windows Control Panel and make sure that the

conﬁguration settings are properly conﬁgured for your

network environment. Contact your system administrator

for assistance.

Windows 98

To install the NIC driver and software under Windows 98,

you need the Windows 98 installation ﬁles. These ﬁles

may be on a CD or diskettes, or they may have been copied

to your hard drive when Windows 98 was installed on

your PC.

If you encounter problems during the installation, see

the WIN98.TXT ﬁle located in the HELP directory on

EtherDisk diskette 3 for troubleshooting tips.

Before installing the NIC driver and software:

■Make sure that you have run the preinstallation

program, as described earlier in this guide.

■Make sure that the NIC is installed in the PC and

that it is connected to the network.

Book Page 9 Friday, March 19, 1999 11:21 AM

10 ETHERLINK 10/100 PCI FOR COMPLETE PC MANAGEMENT NICSQUICK GUIDE

To install the NIC driver and software on a PC running

Windows 98:

1 Turn on the power to the PC.

Windows 98 detects the NIC. The Add New Hardware

Wizard starts.

2 Insert EtherDisk diskette 1 in drive A, and then

click Next.

3 Select Search for the best driver for your device

(Recommended), and then click Next.

4 Select Floppy disk drives, and then click Next.

Windows ﬁnds the driver ﬁle for the device.

5 Click Next.

If the Insert Disk dialog box appears, prompting you to

insert EtherDisk diskette 1, click OK.

Files are copied. You are prompted for EtherDisk diskette 2.

6 Remove EtherDisk diskette 1 from drive A, insert

EtherDisk diskette 2, and then click OK.

Files are copied. You are prompted for the Windows 98 CD.

7 Insert the Windows 98 CD or diskette, and then

click OK.

If you do not have the Windows 98 CD or diskette, but the

Windows 98 installation ﬁles are on your hard drive, click

OK. Enter the directory in the Copy Files From entry box

(usually C:\WINDOWS\OPTIONS\CABS), and then click OK.

Files are copied. You are prompted for EtherDisk diskette 2.

8 Make sure that EtherDisk diskette 2 is in drive A, and

then click OK.

Files are copied.

9 Click Finish.

You are prompted to restart the PC.

Book Page 10 Friday, March 19, 1999 11:21 AM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels 3Com Carte réseau

3Com

3Com EtherLink 3CR990-TX-95 Manuel utilisateur

3Com

3Com 3CR990 Manuel utilisateur

3Com

3Com EtherLink XL 10 Manuel utilisateur

3Com

3Com Fast EtherLink XL PCI 10/100BASE-TX Manuel utilisateur

3Com

3Com 3C905CX Manuel utilisateur

3Com

3Com 3CR990-FX-97 Manuel utilisateur

3Com

3Com TokenLink Velocity 3C319 Manuel utilisateur

3Com

3Com TokenLink Velocity 3C319 Manuel utilisateur

3Com

3Com Network Ethernet Adapter Manuel utilisateur

3Com

3Com EtherLink 3C985B-SX Manuel utilisateur

3Com

3Com TokenLink 3C359 Mode d’emploi

3Com

3Com 09-0572-000 Manuel utilisateur

3Com

3Com III ISA Manuel utilisateur

3Com

3Com Dual E3 Asynchronous Manuel utilisateur

3Com

3Com Megahertz Series Manuel utilisateur

3Com

3Com Fast EtherLink XL PCI 10/100BASE-TXNetwork Interface... Manuel utilisateur

3Com

3Com 3CSOHO100- Manuel utilisateur

3Com

3Com 3CR990 Mode d’emploi

3Com

3Com TokenLink 3C359 Manuel utilisateur

3Com

3Com HiPer DSP Manuel utilisateur

3Com

3Com 3C589D Manuel utilisateur

3Com

3Com Fast EtherLink 3C515-TX Manuel utilisateur

3Com

3Com TokenLink Velocity TokenLink VelocityTM XL PCI Network Interface... Manuel utilisateur

3Com

3Com EtherLink 3C905C-TX Manuel utilisateur

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Cisco

Cisco MC16E Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel d'utilisation

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITXR Manuel utilisateur
