3-form SimpleSpec 600.06 Manuel utilisateur

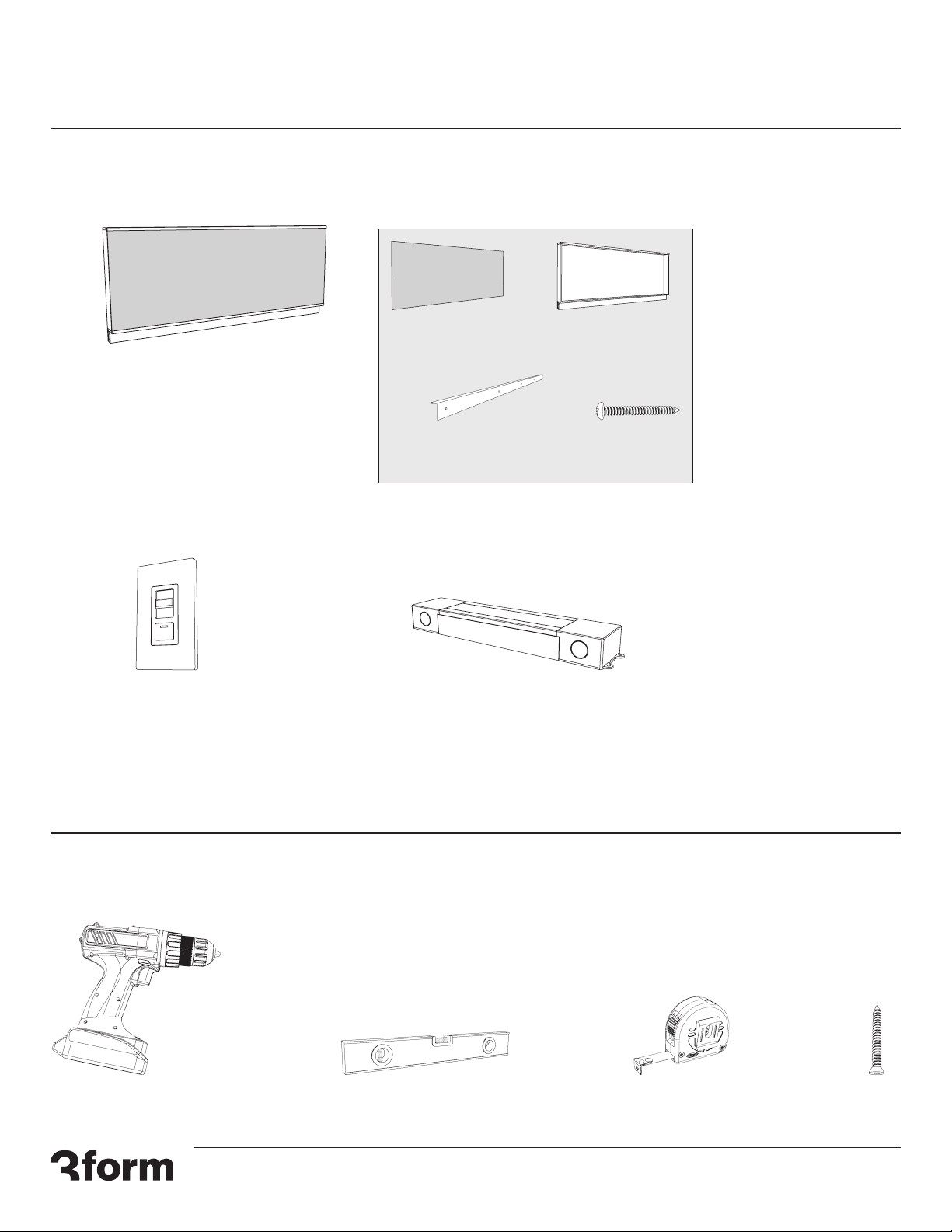

Contents Overview
(1)
0-10V Slide Control
Wall Dimmer
3-60-497
96W Dimmable
Power Supply
3-60-765
small (1)
large (2)
Bottom Angle
(1) =
Varia Panel with
LightBox Attached
+
Varia Panel
(1) (1)
LightBox
+ +
(1) (5)
Screw
Required Tools
Drill Level ScrewsMeasuring Tape
2
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
72"
(1829mm)
6⅛"
(156mm)
40"
(1016mm)
Overview
Small
1
1
1
96W 24V PS
6"
36"
40"
72"
44"
44"
2¾"
3"
22"
22"
3form provided
starter feed
Contractor Line
14AWG 50' max
3
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
96"
(2439mm)
6⅛"
(156mm)
40"
(1016mm)
Large
Overview
1
2
1
2
96W 24V PS
96W 24V PS
6"
36"
40"
96"
44" 44"
44" 44"
2¾"
4" 3form provided
starter feed
Contractor Line
14AWG 50' max
4
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
Installation
Prepare to Install1
600.06 come fully assembled and ready to mount inside your reception desk or feature.
Remove 3form decorative panel by unscrewing and removing the bottom angle bracket. This will allow the panel to
slide out toward the bottom.
a
b
c
5
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
Installation
2Mount to Desk
Mount the 3form relective box to the desk through the back relective panel with screws or bolts.
6
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
Installation
3Connect Electrical
Have a qualiied electrician wire up the low voltage wires to the LED drivers and test lighting.
3Connect Electrical
Wiring Diagram for Small 600.06
a
--
Dimmable Power Supply
W
--
Dimming
Switch Add up to 50' max
of 18AWG+ wire.
Customer supplied.
Wall Slide Dimmmer
(3-6-497) can have
up to twelve 100W
Power Supplies
(3-6-765)
Note: Wiring is as shown unless
shown dierently on 3form
Lighting Layout Drawing
AC/N
Blue
Green
AC/L
Black
Red
Brown
VAC
Primary Purple
Blue
Grey
Red
Black -
From PS
LED wire or -
does not matter
7
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
Installation
3Connect Electrical cont...
bWiring Diagram for Large 600.06
3-60-765
Dimmable Power Supply
96W
3-6-497
Dimming
Switch
96W
Add up to 50' max
of 18AWG+ wire.
Customer supplied.
Wall Slide Dimmmer (3-6-497)
can have up to 12 100 W PS
(3-60-765)
96W
Purple
Blue
Grey
White
AC/L
Brown
Green
AC/N
Black
Red
Blue
Note: Wiring is as shown unless
shown dierently on 3form
Lighting Layout Drawing
120VAC
Primary
Red (+)
Black
(-)
From PS
LED wire(+) or (-)
does not matter
3-60-765
Dimmable Power Supply
3-60-765
Dimmable Power Supply
8
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
Installation

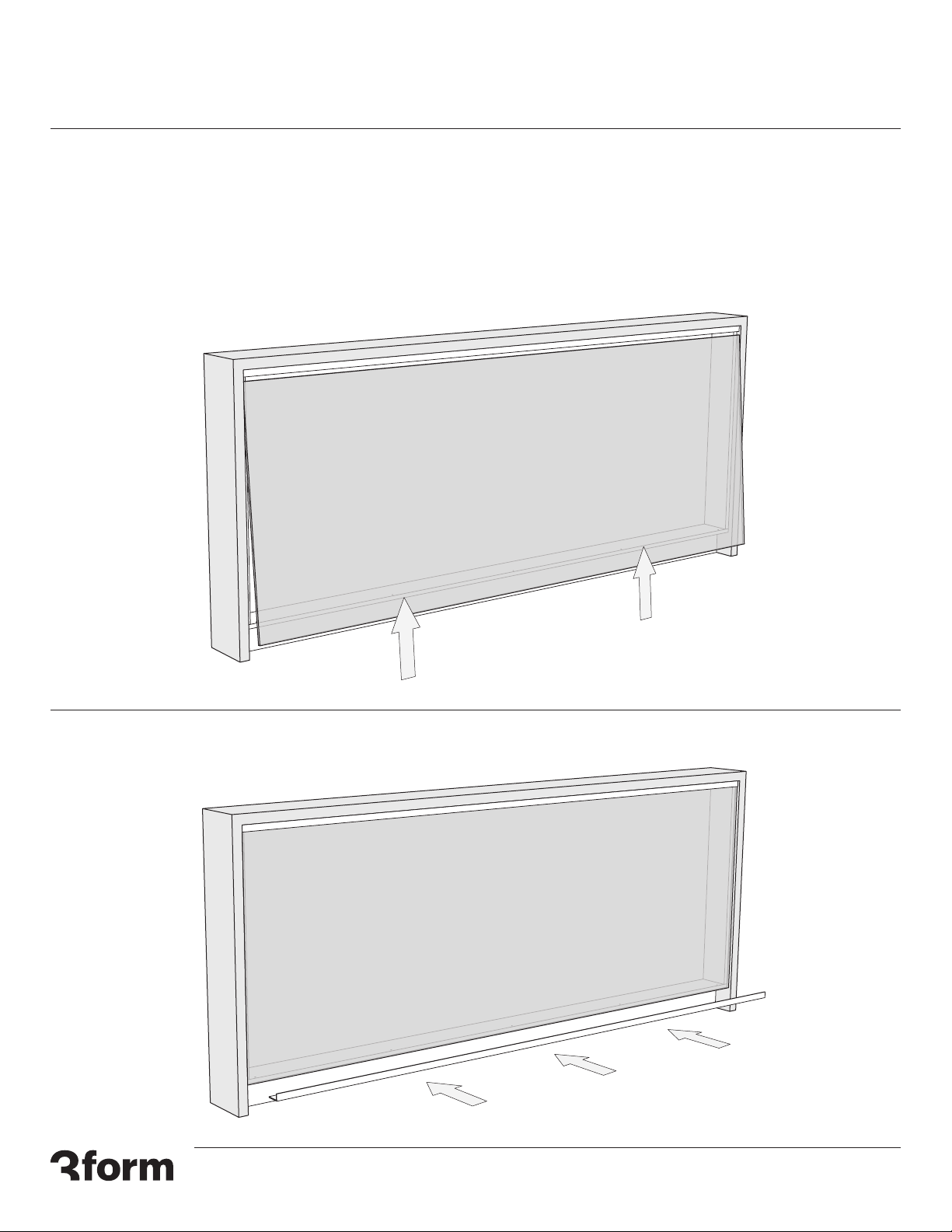

4Reinsert the Panel
Slide the 3form panel back into the upper brackets.
a
bReplace the bottom angle bracket and screws to hold panel in place.
9
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
Toe kick area does not come inished and must be covered on site by installer to match toe kick spec from Architect.
Installation
4Reinsert the Panel cont...
c
10
For more information, please visit 3-form.com or call 800.726.0126
JUNE 2018 | MANRTG60006 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 600.06tm
Installation Manual
Ready To Go
