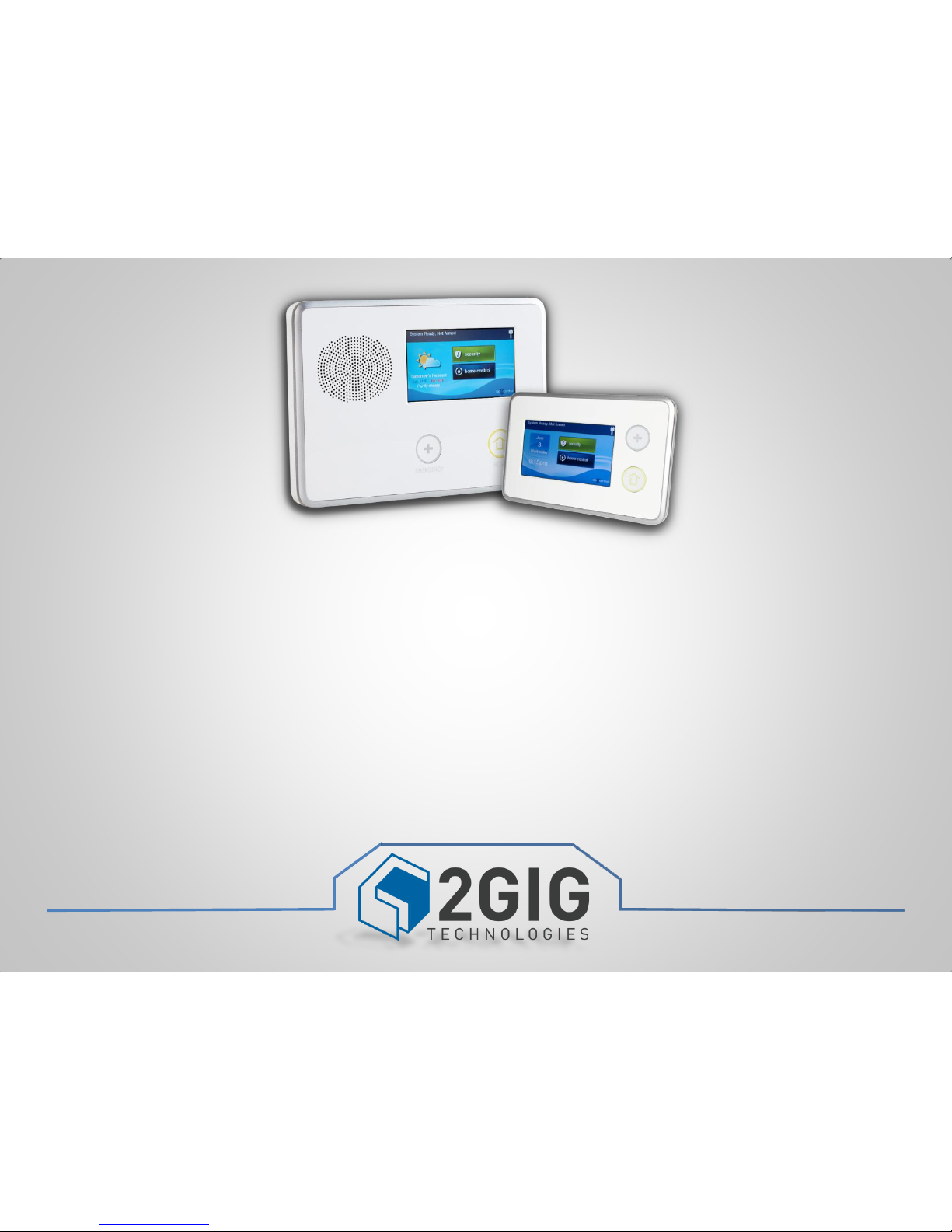

Go!Control
Installation and Programming
Technical Training
HARDWARE
•System Capabilities
•What’s Inside
•The Transformer
•Terminal Block
•GSM Unit
SYSTEM CAPABILITIES
•48 Wireless Zones
•2 Hardwired Zones
•8 Keyfobs
•4 Secondary Keypads
•2-Way Over GSM (default)
•2-Way Over POTS (optional)
•232 Z-Wave devices
HARDWARE
WHAT’S IN THE PANEL
•Third Hand
•RJ45 Connector (POTS)
•24 HR Back-Up Battery
•345Mhz Receiver
•Terminal Block
•GSM Antenna Compartment
•Pop-In Style GSM Unit
•85dB Siren/Speaker
HARDWARE
THE TRANSFORMER
•VDC Positive (+)
•VDC Negative (-)
Wire to port 1 (+) inside the panel
Wire to port 2 (-) inside the panel
HARDWARE
TERMINAL BLOCK
•8) Hardwire Zone 2
•7) Hardwire Zone 1
•6) External Bell (-)
•5) External Bell (+) (6-12 VDC @ 120mA max)
•4) Open Collector Output (250mA @16VDC max)
•3) Ground (hardwire zones)
•2) 14VDC Input (-) from Transformer negative (-)
•1) 14VDC Input (+) from Transformer positive (+)
HARDWARE
GSM MODULE
•Mounting Screws
•Antenna Port
•IMEI# (Serial Number)
PROGRAMMING
•Installer Toolbox
–System Configuration
•Programming a Zone
•Programming a Keyfob
•Programming a Keypad
–Radio Status
–System Restore
–Walk Test
–Disable Sounder
PROGRAMMING
INSTALLER TOOLBOX
Press
SECURITY
PROGRAMMING
INSTALLER TOOLBOX
Press
MENU
