Volvo XC 90 EXCELLENCE 2018 Guide de configuration
VÄLKOMMEN!
Here you can read about the functions for the rear seat in your Volvo XC90 Excellence. More detailed owner's information is available in
the car, in the app and on the web.
THE CAR'S CENTRE DISPLAY
The owner's manual is available in the car's centre display, where it can
be accessed via the top view.
MOBILE APP
The owner's manual is available as an app (Volvo Manual) for
smartphones and tablets. The app also contains video tutorials for
selected functions.
VOLVO'S SUPPORT SITE
The Volvo Cars support site (support.volvocars.com) contains manuals
and video tutorials, as well as additional information and assistance for
your Volvo and your car ownership.
PRINTED INFORMATION
There is a supplement to the owner's manual in the glovebox that
contains information on fuses and specifications, as well as a summary
of important and practical information. A printed owner's manual and
associated supplement can be ordered.

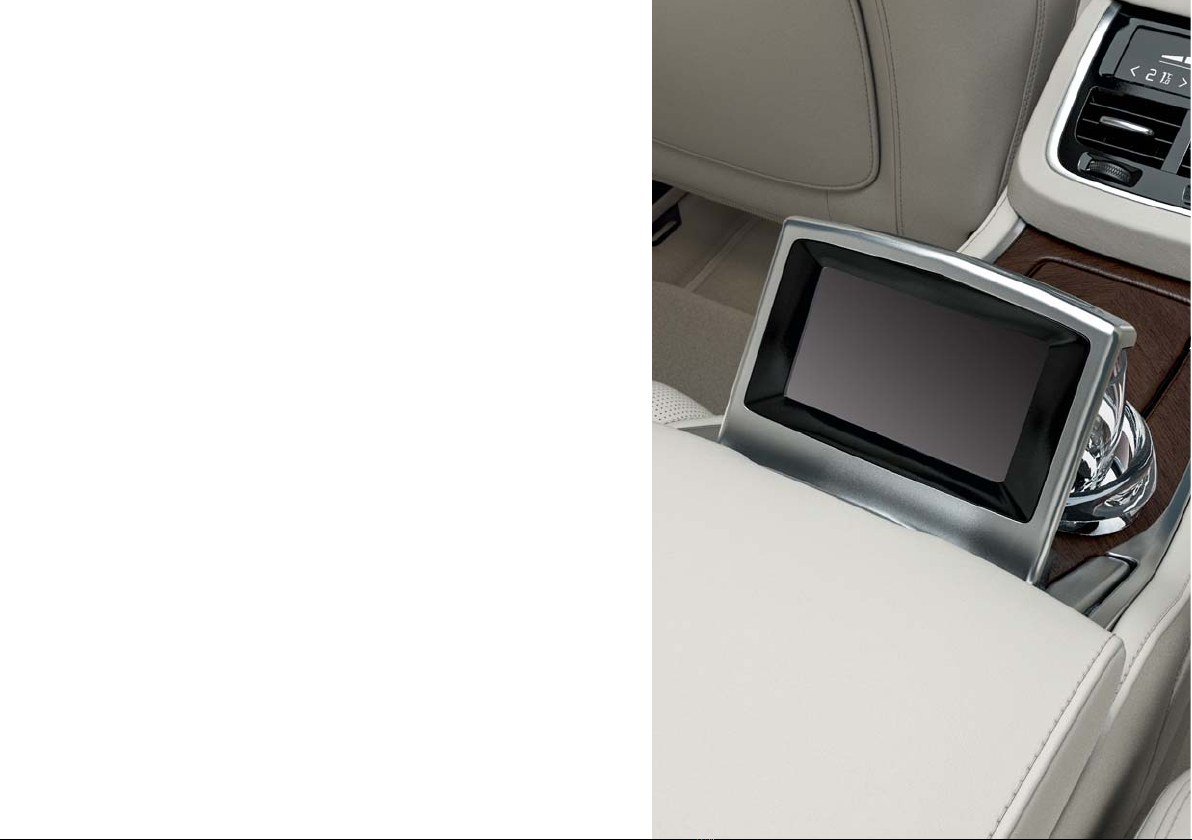

CONTROL DISPLAY IN THE REAR SEAT
The control display is fitted in the tunnel console between the
rear seats and it controls the seat functions as well as the
heating and cooling of drinks.
Raising the screen
– Press the top of the screen. The screen rises automatically.
The screen starts automatically when it is raised. The light is
dimmed after a certain time. Touch the screen to reactivate it.
Lowering the screen
The screen is lowered manually:
– Press the top of the screen. Press until the screen is fully
lowered into the tunnel console. The screen is switched off
when it is lowered.
AIR IONISER
The air ioniser contributes to improving the air quality in the
passenger compartment by ionising the blown-in air, thereby
supplying the passenger compartment with fresh air. The
function is always active when the car is in at least ignition
position I.
The control display is a touch screen that reacts to touch. The display
consists of different views. Tap on a button in the screen to activate
the desired function or to access the view for a function.
Buttons in the home view
Button for heating the left and right-hand seat
respectively.
Button for cooling/heating the cup holders.
Button for ventilating the left and right-hand seat
respectively.
Button for adjusting the front passenger seat from the
rear seat.
Returning to home view from another view
The control display automatically returns to the home view after a
certain time. When adjusting the front passenger seat, tap on the
cross to return to the home view.
NAVIGATING IN THE CONTROL DISPLAY
Adjust the backrest rake by adjusting the control forward/backward.
Settings for massage, side support, lumbar support and seat cushion
extension are linked to the multi-function control.
Raise/lower the seat by means of adjusting the rear section of the
control up/down. Move the seat forward/backward by adjusting the
control forward/backward.
Raise/lower the seat cushion front edge by means of adjusting the
front section of the control up/down.
Only one movement (forward/back/up/down) can be made at a time.
The seat can be adjusted for a period of time after unlocking the door
without the car running. Seat adjustment can always be performed
when the car is running. Adjustment can also be performed for a
period of time after the car has been switched off.
The seats have overload protection which is triggered if a seat is
blocked by an object. If this happens, remove the object and then
operate the seat again.
To adjust the sleeping/comfort position, it may be necessary to first
move the seat forward slightly.
ADJUSTING THE REAR SEAT
The car's rear seats have different setting options for optimum seating
comfort.
OPERATING THE MULTI-FUNCTION CONTROL
Use the multi-function control to adjust lumbar support, side bolsters
in the backrest, seat cushion length as well as massage settings.
Settings made with the multi-function control are shown in the control
display. The screen only shows the settings of one seat at a time.
1. Raise the control display manually.
2. Activate seat adjustment by turning or pressing the multi-function
control in any direction. The seat settings view opens in the control
display.
3. Select the desired function in the control display by tapping on the
display or turning the multi-function control up/down.
4. Change the setting by pressing the control in the desired direction.
Massage
Tap on the screen button or select the function with the
multi-function control to activate the massage function. It
is not possible to use the massage function when the car
is switched off.
The following setting options are available for massage:
On/Off: Choose between On or Off to activate/deactivate
the massage function.
Programs 1-5: There are five preset massage programs.
Choose between 1(Swell), 2(Tread), 3(Advanced),
4(Lumbar) and 5(Shoulder).
Intensity: Choose between low, normal and high.
Speed: Choose between slow, normal and fast.
Side support
Tap on the screen button or select the function with
the multi-function control to activate adjustment of side
bolsters in the backrest.
• Press the front section of the seat button on the
multi-function control to increase side support.
• Press the rear section of the seat button in order to
reduce the side support.
Lumbar support
Tap on the screen button or select the function with the
multi-function control to activate adjustment of lumbar
support.
• Press the seat button up/down on the multi-function
control to move the lumbar support up/down.
• Press the front section of the seat button to increase
lumbar support.
• Press the rear section of the seat button in order to
reduce the lumbar support.
Extending the seat cushion
Tap on the screen button or select the function with the
multi-function control to activate adjustment of the seat
cushion.
• Press the front section of the seat button on the
multi-function control to extend the seat cushion.
• Press the rear section of the seat button in order to
retract the seat cushion.
The front passenger seat can be adjusted from the rear seat for
longitudinal position and the backrest rake can be changed. Use the
control display between the rear seats to change the settings of the
front passenger seat.
1. Tap on the button in the display to adjust the front
passenger seat from the rear seat.
2. A new view opens and the seat's longitudinal position
and backrest rake can be adjusted.
3. Tap on the cross to return to the home view.
Adjusting the backrest rake
• Tap on the upper left-hand arrow to fold forward the backrest on the
front passenger seat.
• Tap on the upper right-hand arrow to fold back the backrest on the
front passenger seat.
Adjusting longitudinally
• Tap on the lower left-hand arrow to move the front passenger seat
forward.
• Tap on the lower right-hand arrow to move the front passenger seat
backward.
ADJUSTING THE FRONT PASSENGER SEAT FROM THE REAR SEAT
HEATED/VENTILATED SEATS
IPAD HOLDER
There is a holder on the rear of the front seat's head restraint that fits
most iPad models. Attach an iPad as follows:
1. Press down the tab and fold it forward against the head restraint to
open the cover.
2. Slide the iPad into the holder and close the cover.
To detach the holder from its bracket, proceed as follows:
1. Depress the button on the underside of the fixed section.
2. Pull the holder back/up to detach it from the bracket.
The seats can be heated in order to increase comfort when it is cold.
The seat heater is controlled from the control display.
– Tap repeatedly on the button for the left or right-hand seat
to change between the four levels: off, high, medium and
low. The button shows the set level.
The seats can be ventilated, for example, to remove moisture from
clothes. The seat ventilation is controlled from the control display.
– Tap repeatedly on the button for the left or right-hand seat
to change between the four levels: off, high, medium and
low. The button shows the set level.
FOLDING OUT THE TABLES
There are two tables under the armrest that can be folded out over
the rear seats.
1. Fully open the armrest cover.
2. Lift the table up out of the armrest using the leather tab and swing
the table out to a completely vertical position.
3. Fold down the table top across the seat.
Repeat the steps in reverse order to fold the tables back in.
MOUNTING POINTS FOR CHILD SEATS
The car is equipped with mounting points for child seats in the rear
seat row.
The upper mounting points are primarily intended for use with
front-facing child seats.
1. Slide the seat forward and fold the backrest forward in order to
access the mounting point.
2. Always follow the manufacturer's mounting instructions for correct
assembly.
