CONVECTION OVEN
12 Liters
INSTRUCTION MANUAL
Model: MCSGC12B
THANK YOU FOR URCHASING A MAGIC CHEF RODUCT. LEASE
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE RODUCT.
2
CONTENTS
Safety Instructions ……………………………………………….……………………………………………………………… 3
Important Safeguards ………………………………………………………………………………………………….……… 4
Parts and Features …………………………………………………………………….………………………………... 6
Before Use ………………………………………………………………………………………………………………………….. 7
Operating Instructions ……………………………………………………………………………………..…………………. 8
ooking Guide …………………………………………………………………………………………………….………..…… 9
are and Maintenance ……………………………………………………………………………………………………... 13
Warranty …………………………………………………………………………………………………………………………... 14
3

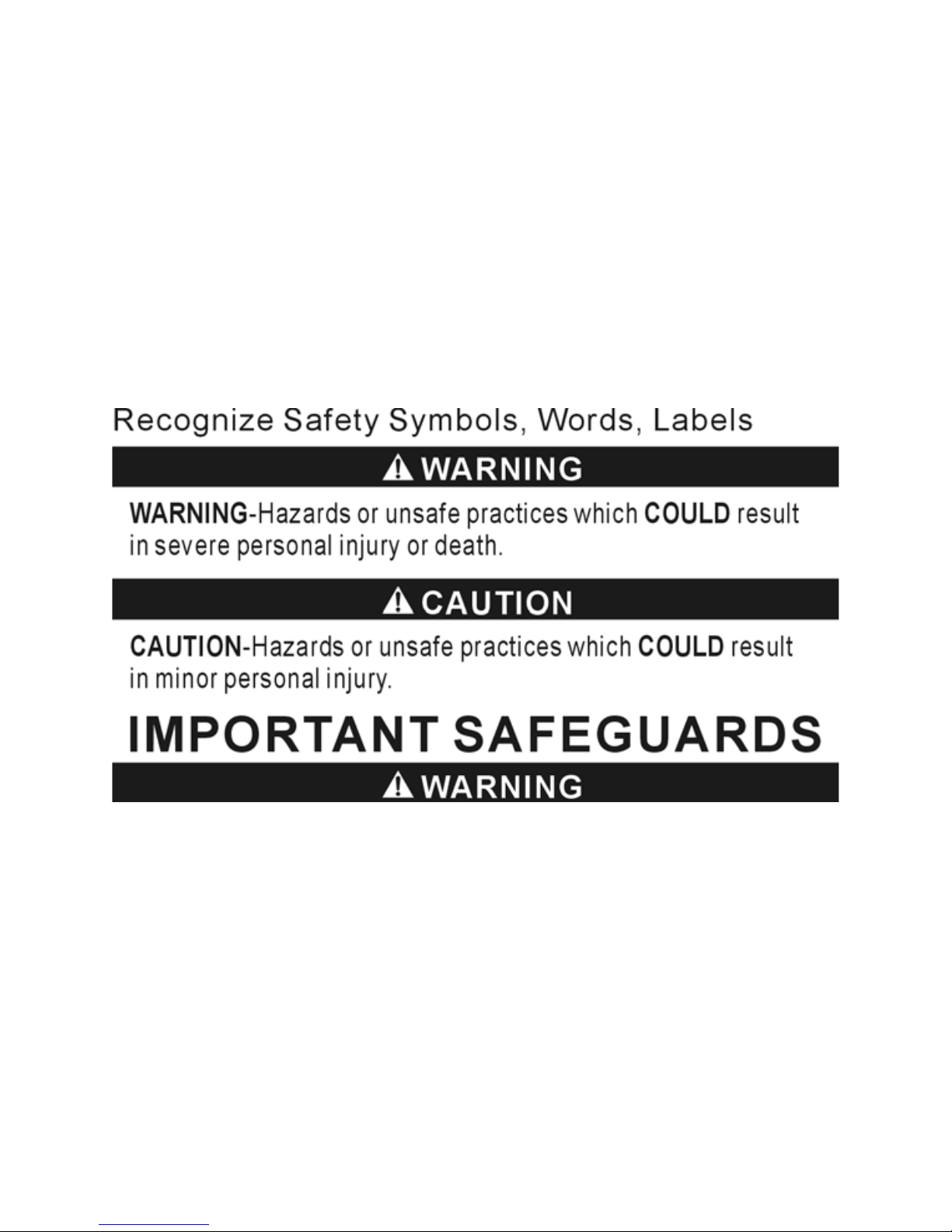

What You Need to Know About Safety Instructions
Warning and Important Safety Instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur. Common sense, caution and care must be
exercised when installing, maintaining, or operating appliance.
lways contact your dealer, distributor, service agent or manufacturer about problems or
conditions you do not understand.
SAVE THESE INSTRU TIONS
FOR HOUSEHOLD USE ONLY
4
IM ORTANT SAFEGUARDS
When using electrical appliances, basic precautions should always be followed, including the
following:
1. READ ALL INSTRU TIONS BEFORE USING.
2. This appliance is for household use only. Do not use outdoors.
3. Do not use this appliance for other than its intended use.
4. Before using for the first time, check if the voltage indicated on the base of the
appliance corresponds to the voltage in your home.
5. Do not turn the power on unless this appliance is properly assembled.
6. Close supervision is necessary when any appliance is used by or near children.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance
malfunctions or has been damaged in any manner. Return this appliance to authorized
service center for examination, repair or adjustment.
8. The use of attachments or accessories not recommended or sold by the manufacturer
may result in fire, electric shock or injury.
9. Unplug the appliance from the outlet when not in use, assembling and disassembling,
and before cleaning. Make sure the appliance cools down completely before assembling,
disassembling and cleaning.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not touch hot surfaces. Use handles or knobs.
12. Leave about 6 to 8 inches open spaces all around the exterior of this appliance.
13. Do not use this appliance as a fryer. Do not attempt to fill with oil or attempt to deep fry.
Such actions may cause fire and injury.
14. Do not cover the appliance while in use.
15. Oversize foods or metal utensils must not be inserted in the appliance as they may
create a fire or risk of electric shock.
16. Do not place the appliance near or touch flammable material such as curtains, draperies,
wall, when in operation.
17. lways place the lid on the bowl before plugging the power cord and switching on.
18. Extreme caution must be taken when moving an appliance containing hot liquids.
19. The oven should be operated on a separate electrical circuit from other operating
appliances. If the electric circuit is overloaded with other appliances, this appliance may
not operate properly.
5
20. Do not move or lift the oven while the power cord is still connected to the wall outlet.
21. Before removing the lid:
a. Turn off the timer.
b. Disconnect the power cord.
c. Lift the top lid by the carrying handle.
22. Do not place the hot underside of the lid directly onto laminated surface, wood surface,
paper, plastic or other flammable surfaces.
NOTE: Place the lid only on a heat resistant surface.
23. Never place the lid on a chair or bench while it is plugged in and operating.
24. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical
parts inducing a risk of electric shock.
25. The glass bowl container is designed for use with this appliance. It must never be used
on a range top.
26. Do not set a hot glass bowl container on a cold surface.
27. Do not use a cracked glass bowl container or a glass bowl container having a loose or
weakened handle.
28. llow to completely cool and store in a cool dry place.
29. Do not wash the lid in the water. Clean the lid with soft cloth if necessary.
30. Do not wash the glass bowl when it is hot.
6
ARTS AND FEATURES
*Make sure that the power and temperature setting are off before plugging in the cord.
SPECIFIC TIONS:
• Voltage Rating: 240V
• Power Rating: 1400 Watts
• Maximum Capacity: 12 Liters
• Temperature Control: Defrost, 149° – 482°F
Timer
Thermostat
Cooking ir Flow
Heated Cooking ir
Chrome Steel Racks
Motor
Container
CONTRO
L P NEL
Thermostat
Timer
7
BEFORE USE
1. Carefully unpack the convection oven and remove all packaging materials.
2. Select a flat, heat-resistant, and non-flammable surface to place the convection oven.
3. Do not immerse the heating element or lid in water or any other liquid.
4. To remove any dust that may have accumulated on the removable parts during packaging,
clean the surface with a damp cloth and remove any stickers (except for any warning/caution
stickers).
5. Wash the glass bowl container in warm soapy water. Rinse and dry thoroughly.
6. Before first use, heat up the oven, empty, at maximum temperature for five minutes. This
will burn off the brand new scent. little smoke may occur. This is normal and will soon
disappear during usage.
7. fter the timer has turned off and the oven is completely cooled, wipe the inside of the glass
bowl container once more.

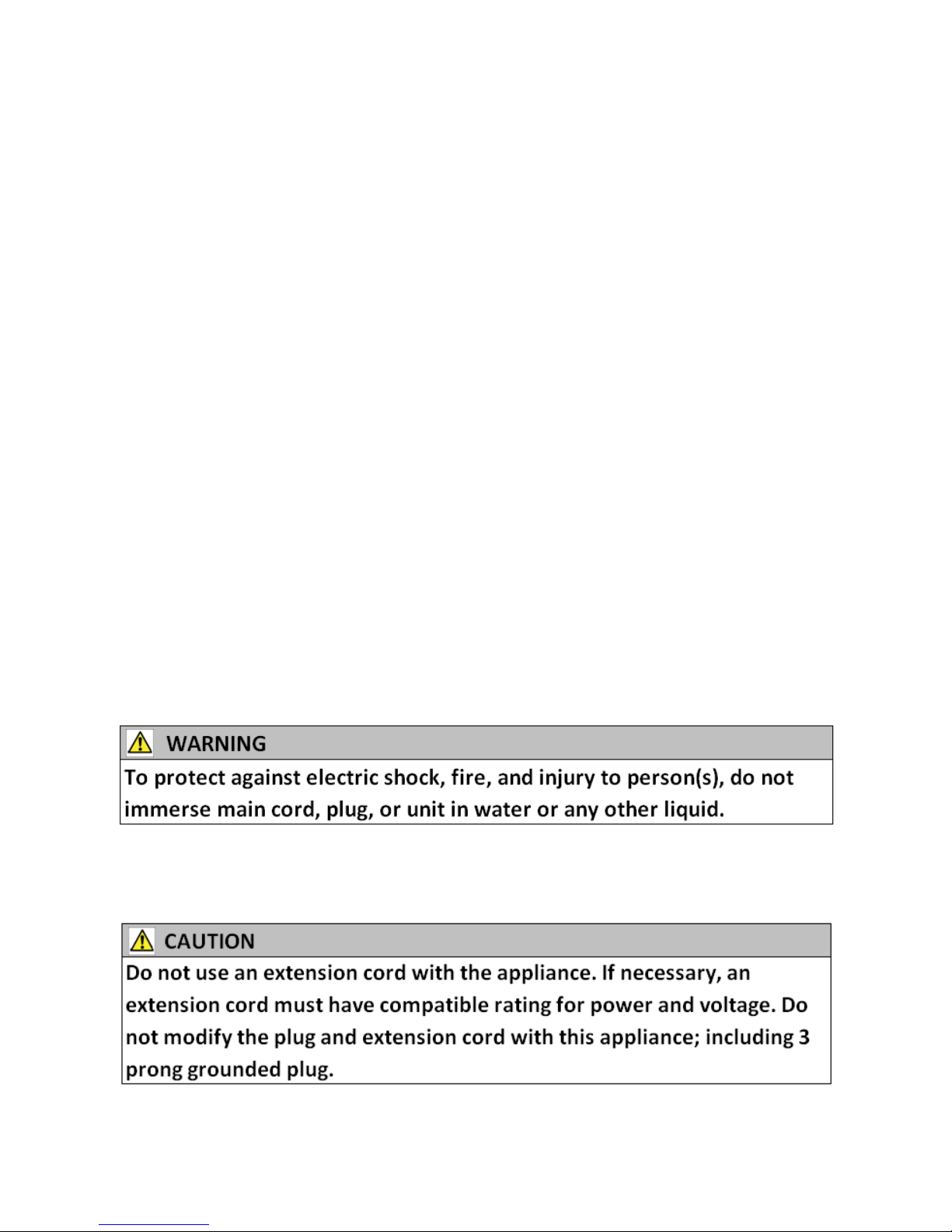

WARNING
:
To ensure continued protection against the risk of electric shock, connect to properly
grounded outlets only.
This appliance has a three-prong plug (meaning there are three prongs to fit into a power
outlet).
To reduce the risk of electric shock, this plug is intended to fit into a three-prong electrical
outlet only in one direction. If it does not fit, contact a qualified electrician. Do not attempt to
modify the plug in any way.
CAUTION
:
Always be aware that this is an oven and that the glass bowl container and the lid will
become very hot during its use.
NOTE: lways place a pan or bowl on one of the included racks. Do not place a pan or bowl
directly on the bottom of the glass bowl container.
8
O ERATING INSTRUCTIONS
1. Place the low rack in the glass bowl container before putting in the food. Keeping the
food approximately 1 to 1.25” from the glass wall to allow maximum hot air circulation.
NOTE: Dual rack is used for achieving crispness or browning of the food.
2. Place top lid securely on the glass bowl container.
NOTE: Make sure that the food does not touch the top of the lid.
3. Insert the power cord firmly into the wall outlet.
4. Before turning the oven on, push handle down until it snaps securely in place. If the
handle is not completely down, the oven will not turn on.
5. Set the timer to the desired time. The power LED lights will illuminate.
6. The timer will switch “off” after the preset time period has passed and a bell will sound
momentarily to alert you that the cooking time is over.
7. Unplug the cord from the power outlet before removing the lid.
8. Do not put the oven lid directly on the countertop or table or cooking surface, otherwise,
the cooking surface may leave a spot.
9. lways use wooden, heat proof plastic and nylon utensil while cooking. Metal utensils
may scratch the glass bowl container.
NOTE: s a safety feature, the convection oven will switch off when the handle is lifted up.
To turn the appliance back on, swing the handle all the way down.
9
COOKING GUIDE
NOTE: ll cooking times are approximate. lways ensure food is fully cooked inside before
serving. For chicken and roasts, preheating is strongly recommended.
Poultry
ooking Time (min) Temperature Rack Used
Whole 35-40 350°-400°F Low Rack
hicken Parts 18-25 350°-400°F High Rack
Poached 6-8 350°F Low Rack
Soft-Broiled 5-7 400°F Low Rack
Eggs
Omelet 12-14 350°F Low Rack
Meats
ooking Time (min) Temperature Rack Used
Rare 6-8 475°F High Rack
Medium 9-12 475°F High Rack
Steak
Well 14-17 475°F High Rack
Fresh 3-5 400°F Low Rack
Hot Dog Frozen 6-9 400°F Low Rack
Bacon 8-9 400°F Low Rack
Sausage Links 5-7 400°F Low Rack
Ribs 18-25 475°F Low Rack
Seafood ooking Time (min) Temperature Rack Used
Fish 18-25 250°-300°F Low Rack
rab 15-20 275°-325°F Low Rack
Bread ooking Time (min) Temperature Rack Used
Bread 10-15 250°-275°F Low Rack
10
COOKING TIPS
Broiling and Grilling
• Place food directly on the low rack without covering. Use the high rack to bring food closer to
heat source for additional crispness and browning of food.
• If the meat or fish is very lean, brush the rack with cooking oil before arranging the food on
the rack.
• For a glazing affect, set the food 4 inches away from top heating unit. pply the desired glaze
and broil at 400 to 475F until the desired shade of brown is reached. Fruit jams, preserves and
jellies work well as a glaze for broiled foods.
Baking
• When baking cakes, biscuits, brownies, muffins and cookies make sure the containers fit
within the glass bowl and on top of rack. Disposable aluminum foil mini-loaf pans work well as
they allow for faster and even cooking. Preheating is not necessary for baking in a convection
oven.
Air Frying
• Little or no oil is used, yet the effect is like pan-frying or deep frying. If oil is used, only a thin
layer of oil should be evenly applied to the food with the aid of a pastry brush.
• Spray or brush vegetable oil onto the rack to assist with easier removal of cooked food.
• Once food has finished cooking, remove the top lid from the glass bowl, otherwise, the steam
will cause the food to become soggy instead of crispy.
NOTE: NEVER FILL THE GLASS BOWL WITH OIL. THIS APPLIAN E IS NOT TO BE USED AS A DEEP
FRYER!
Steaming
To steam, place food in a bowl or small pan on top of the low rack making sure that the food
does not contact the sides of your container. Pour water or broth into the bottom of the bowl
or pan using half cup of liquid for every 1lb of food. Cover tightly with aluminum foil making
sure food does not come in contact with the foil. Place wrapped container into the oven and
cook at 350F for 5 to 10 minutes depending upon individual taste.
