Installation manualModular refrigerator

Connection kit

2 electrolux.com.au

CONNECTION KIT

This connection kit is designed for use on the following top mount, bottom mount and single door

refrigerators and freezers whose total body height is 1725 mm.

The model numbers and overall dimensions of individual products are:

max

door

height

cabinet

height

total

height

door

width

cabinet

width

total

depth

cabinet

depth

door

open

model description (H) (H1) (H2) (W) (W1) (D) (D1) (D2)

ETE4607SA-R 460 lt Top-Mount, RH Door 1725 1705 1725 699 693 773 641 1360

ETE4607SA-L 460 lt Top-Mount, LH Door 1725 1705 1725 699 693 773 641 1360

ETE5407SA-R 540 lt Top-Mount, RH Door 1725 1705 1725 796 790 773 641 1457

ETE5407SA-L 540 lt Top-Mount, RH Door 1725 1705 1725 796 790 773 641 1457

EBE4507SA-R 450 lt Bottom-Mount, RH Door 1725 1705 1725 699 693 773 641 1360

EBE4507SA-L 450 lt Bottom-Mount, LH Door 1725 1705 1725 699 693 773 641 1360

EBE5307SA-R 530 lt Bottom-Mount, RH Door 1725 1705 1725 796 790 773 641 1457

EBE5307SA-L 530 lt Bottom-Mount, LH Door 1725 1705 1725 796 790 773 641 1457

EBE5367SA-R

530 lt Bottom-Mount, RH Door

1725 1705 1725 796 790 773 641 1457

ERE5047SA-R 500 lt Single Door, Refrigerator 1725 1705 1725 699 693 773 641 1360

EFE4227SA-L 420 lt Single Door, Freezer LH 1725 1705 1725 699 693 773 641 1360

All measurements are in millimetres.

SINGLE CABINET DIMENSIONS

22mm

H2 H1

Please note:

Doors are designed

to sit proud of

cabinetry (not ﬂush).

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

Minimum Recommended Airspaces

If you do not have a

cupboard with a rear

gap, the recommended

clearance area on top

increases from 50mm to

90mm (x) and from

32mm to 72mm (y).

When positioned

in a corner area,

spacing of at

least 400mm on

the hinge side

will allow the

doors to open

enough to

enable the

removal of bins

and shelves.

Front face

of bench

aligned to

front corner

edge of

cabinet.

400mm

90°

(x)

(y)

(Rear gap)

Please note:

Doors are designed

to sit proud of

cabinetry (not ﬂush).

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

Minimum Recommended Airspaces

If you do not have a

cupboard with a rear

gap, the recommended

clearance area on top

increases from 50mm to

90mm (x) and from

32mm to 72mm (y).

When positioned

in a corner area,

spacing of at

least 400mm on

the hinge side

will allow the

doors to open

enough to

enable the

removal of bins

and shelves.

Front face

of bench

aligned to

front corner

edge of

cabinet.

400mm

90°

(x)

(y)

(Rear gap)

Please note:

Doors are designed

to sit proud of

cabinetry (not ﬂush).

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

Minimum Recommended Airspaces

If you do not have a

cupboard with a rear

gap, the recommended

clearance area on top

increases from 50mm to

90mm (x) and from

32mm to 72mm (y).

When positioned

in a corner area,

spacing of at

least 400mm on

the hinge side

will allow the

doors to open

enough to

enable the

removal of bins

and shelves.

Front face

of bench

aligned to

front corner

edge of

cabinet.

400mm

90°

(x)

(y)

(Rear gap)

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

Please note:

Doors are designed

to sit proud of

cabinetry (not flush).

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

63mm

HH1

JOINED DIMENSIONS

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

Please note:

Doors are designed

to sit proud of

cabinetry (not flush).

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

63mm

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

Please note:

Doors are designed

to sit proud of

cabinetry (not flush).

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

63mm

individual cabinet widths

(W1)

cabinet

height

max door

height

joined

cabinet

width

joined door

width

max total

depth

max cabinet

depth

model 1 model 2 (H1) (H) (Wa) (Wb) (D) (D1)

693 693 170 5 1725 1407 1419 773 641

693 790 1705 1725 1504 1516 773 641

790 790 1705 1725 1601 1613 773 641

All measurements are in millimetres.

Joined cabinet dimensions:

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

Please note:

Doors are designed

to sit proud of

cabinetry (not flush).

50mm

30mm

CABINET

DOOR

Minimum

recommended

airspace

HH1

4 electrolux.com.au

BEFORE YOU BEGIN

• Thoroughly inspect cabinets for any signs of damage

before commencing installation.

• If any damage is identiﬁed please contact Electrolux

Service.

• Check refrigerator recess dimensions and ensure

that they provide at least the minimum clearance at

the back, side and top as recommended on page 2.

• The ﬂoor where the refrigerator is to be placed must

be level, otherwise you will not be able to install your

refrigerator properly.

• Ensure that the ﬂoor and surrounding cupboards are

adequately protected from damage during unpacking

and throughout the installation process.

• Ensure that two adequate and accessible

powerpoints are installed inside the refrigerator

recess before installing and connecting your

appliances. These powerpoints should also be

readily accessible after fridge installation is

completed.

• Do not use extension leads or power board or

double adapter under any circumstances as it may

lead to electric shock and / or ﬁre. Seek assistance

of a licensed electrician if required.

• Unpack the connection kit and check for

completeness by referring to the “Connection

kit package contents” section.

NOTE:

Due to size and weight of the cabinets as well as

complexity of the task ensure that installation is attempted

with at least two able-bodied persons. You are strongly

urged to consider hiring Electrolux Service to do the

installation.

Item description qty ANC

1Replacement foot base with M4

threaded holes

2x A02102702

2Adjustable Foot Assembly

A02816701

A02816702

3Mounting M5 x 12 bolts 8x A04064701

4M5 nuts 8x A04797101

5Screw 8G x 1/2” type AB pan

head phillips

4x 1449422

6Top front bracket 1x A03972801

7Screw trilobular M5 x 13 6x 811949402

8Bottom rear bracket 1x A03979601

9Bottom front bracket assembly

- grey

(includes tensioner brkt & 3

screws)

1x A03973401

10 Centre trim assembly - grey 1x A03973701

11 Screw thread cutting #8 x 5/8 1x 1460583

CONNECTION KIT PACKAGE CONTENTS

6 electrolux.com.au

INSTALLATION

1.1- Required Tools

• Phillips head screwdriver

• 7mm socket wrench screwdriver

1.2 - Preliminary Operations

1.2.1 - General Preparation

• Pull the appliances together

• Adjust the front feet of the appliances to the same height and alignment

Step 1 .2.2 - Replace Foot Bases

NOTE: 2 people may be required for this operation

• Remove the two front feet that will meet in the middle then remove the factory ﬁtted base, discard and replace

with the foot replacement base part supplied in the kit ensuring that the M4 threaded hole is facing the front and is

nearest the outside edge of the cabinet.

Remove the factory

fitted base

Select the supplied base

(item 5) in the kit

Fit to cabinet

Ensure the hole is nearest the

outside edge of the cabinet

Perform these steps on both cabinets

300mm

100mm

300mm

100mm

INSTALLATION (CONTINUED)

1.2.3 - Fitting rear levelling feet

Note: 2 people may be required for this operation

A set of adjustable back feet is provided with the kit. These parts are usually needed only in the case of a particularly

uneven ﬂoor and when height adjustments in phase 1.2.1 proved unsuccessfull.

• Temporarily remove the screws (A) holding the

evaporator tray.

• Temporarily remove screw (B)

• Pre-assemble the two nuts to bottom of the foot.

• While one operator is lifting the appliance the

other can assemble the foot with the 2 bolts (D)

and screw (E).

• Repeat the process for the other side.

8 electrolux.com.au

INSTALLATION (CONTINUED)

Do not tighten

Remove covers

1.3 - Joining the Appliances

Your appliances are delivered with hole covers that cover

the screw holes. These holes are located on the top of the

cabinet, opposite from the door hinge. Carfully remove

these covers, care must be taken to avoid damaging the

appliances.

Carefully pull the appliances together adjacent to the ﬁnal

installation location, then adjust the front and rear feet to

the same height.

1.3.1 - Top-front and bottom-rear bracket installation

Install the top-front bracket

• Assemble the top-front bracket, ﬁt the 6 screws

in place, but do not tighten them yet leave the

screws loose.

Install the rear-bottom bracket

• Unscrew the 2 central-upper compressor

cover fasteners.

• Remove 2 screws.

• Assemble the rear-bottom bracket reusing

the screws.

INSTALLATION (CONTINUED)

1.4 - Bottom-front bracket installation

1.4.1 - Position the bottom-front bracket

• Position the bottom-front bracket between the

two cabinets.

• Fasten with the two M4 screws using a phillips

head screwdriver.

• Extract the tensioner.

1.5 - Fit the centre cover

• Push the centre cover between the two cabinets

• Engage the bottom end of the centre cover into the

tensioner of the bottom-front bracket.

• Lift the top-front bracket (screws should be loose

enough) and slide the centre cover underneath.

• Tighten the screws in the top-front bracket.

• Adjust the tensioner screw as required.

• Fasten the centre cover to the top-front bracket by

means of the the provided self-tapping screw.

Lift top-front

bracket

Slide centre

cover under

Tighten all

screws

Tensioner

screw

Self tapping

screw

Extract the

tensioner

Fit bottom ﬁrst

Lift top-front

bracket

Slide centre

cover under

Tighten all

screws

Tensioner

screw

Self tapping

screw

Extract the

tensioner

Fit bottom ﬁrst

10 electrolux.com.au

ADJUSTING DOOR ALIGNMENT

To complete installation of your joined appliances it

may be necessary to slightly adjust door alignment

on the individual appliance. This process is illustrated

in the following section.

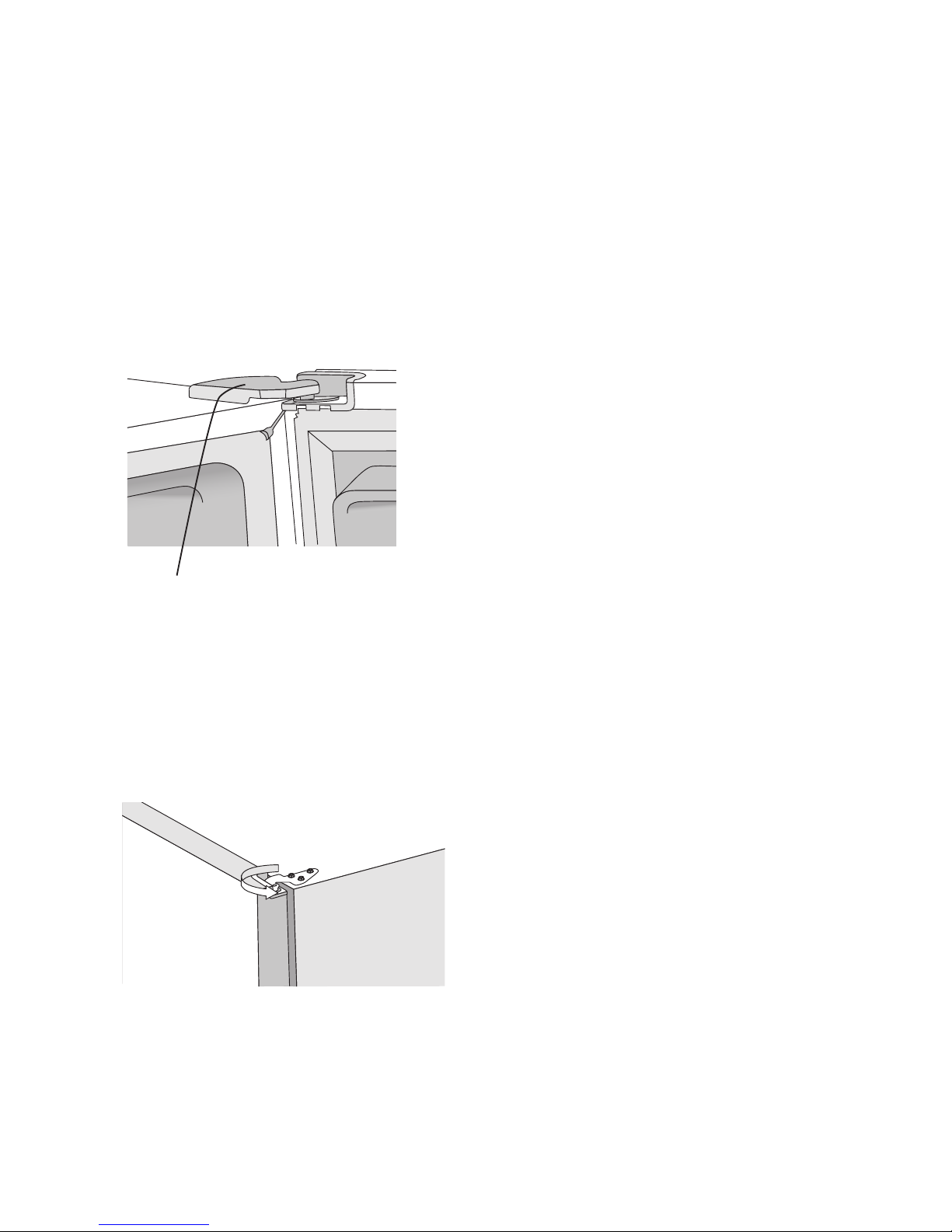

1. With the door open, remove the hinge cover by

simultaneously pulling the cover away and up from

the hinge. This action will release the clip that is

retaining the cover to the hinge.

Small plastic clip is located here. With the door

open, pull the cover outward while simultaneously

pulling up in order to release the hinge cover.

2. Slightly loosen the three screws retaining the hinge to

the cabinet. This will allow for slight movement of the

cabinet door.

Have the assistant hold the door in desired position

and fully secure top hinge fasteners, inspect the

alignment and if satisﬁed clip the hinge cover back

onto the top hinge.

Loosening the top hinge fasteners will allow the top

hinge to be slightly rotated thus adjusting the gap

between doors.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Electrolux Réfrigérateur

Electrolux

Electrolux 241567600 Manuel utilisateur

Electrolux

Electrolux ETB2100 Manuel utilisateur

Electrolux

Electrolux ER9012B Manuel utilisateur

Electrolux

Electrolux ER 7627 BN Manuel utilisateur

Electrolux

Electrolux ER 6621 T Manuel utilisateur

Electrolux

Electrolux ER 8031 B Guide rapide

Electrolux

Electrolux EJF4340AOW Manuel utilisateur

Electrolux

Electrolux ENA34305W Manuel utilisateur

Electrolux

Electrolux ER 2121 S Manuel utilisateur

Electrolux

Electrolux ENN2903COW Manuel utilisateur

Electrolux

Electrolux A Guide de démarrage rapide

Electrolux

Electrolux ecostore Premium Manuel utilisateur

Electrolux

Electrolux FRS20QRC Manuel utilisateur

Electrolux

Electrolux EI28BS51I S Manuel utilisateur

Electrolux

Electrolux SB339NFCN Manuel utilisateur

Electrolux

Electrolux TR903 Mode d’emploi

Electrolux

Electrolux ERE38403W Manuel utilisateur

Electrolux

Electrolux ER 7250B Guide rapide

Electrolux

Electrolux IK2150CZR Manuel utilisateur

Electrolux

Electrolux ERB3902X Manuel utilisateur

Electrolux

Electrolux EW23BC85KS3 Manuel utilisateur

Electrolux

Electrolux LNT3LF34W3 Manuel utilisateur

Electrolux

Electrolux TR870 Mode d’emploi

Electrolux

Electrolux CARAVAN AES II RM 6505 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
