BH FITNESS SB2-PRO Guide de configuration

ILLUSTRATED PARTS MANUAL

Model Number:

Revised 7-10-07

BH FITNESS SB2-PRO

BH North America Corp. 20155 Ellipse Foothill Ranch, CA 92610 P: (949)206-8152 F: (949) 206-0013

www.bhnorthamerica.com Email: [email protected]

BH FITNESS SB2-PRO

PARTS INFORMATION

www.bhnorthamerica.com Email:[email protected]

Page 1

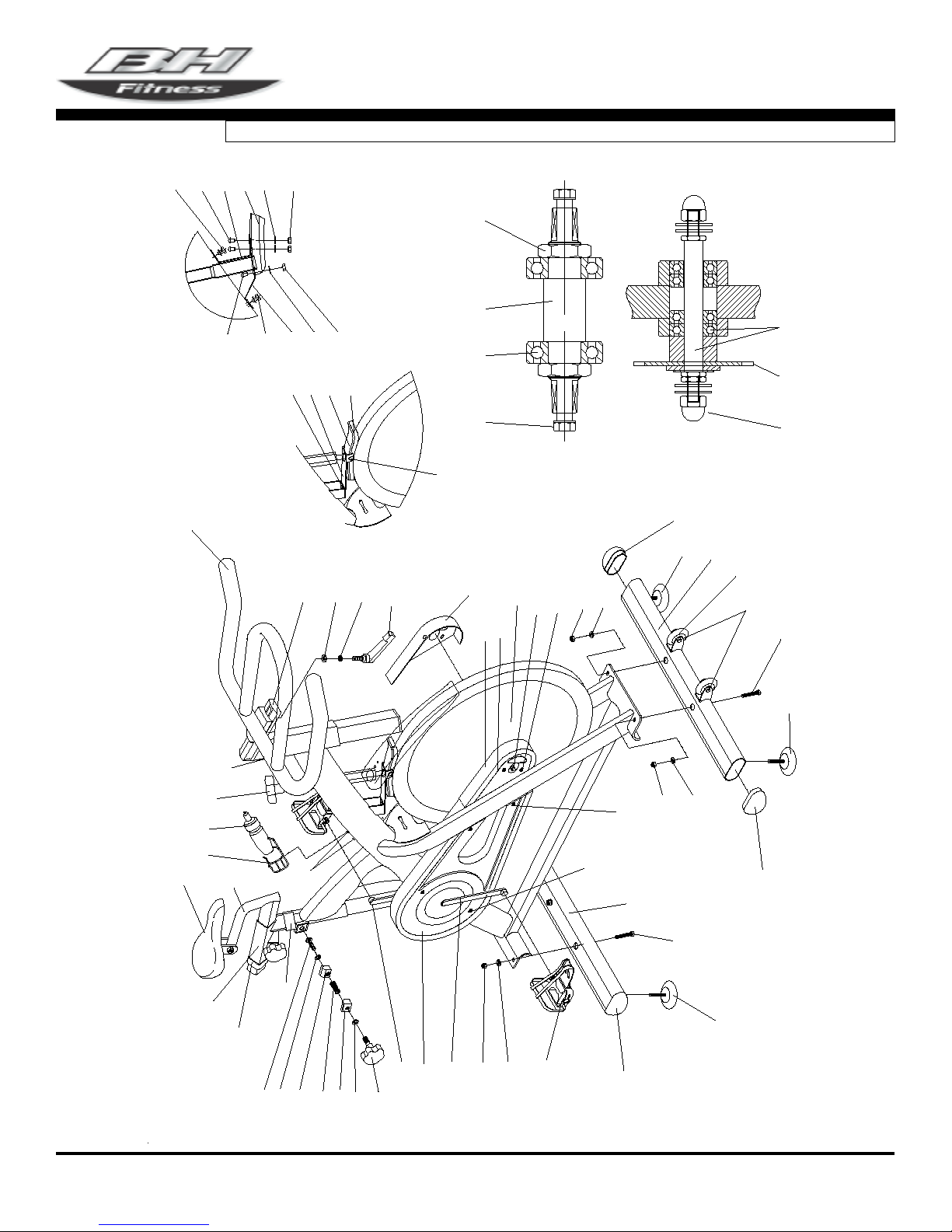

• FIGURE 1

25 26 27

SB2-PRO

55, 55-1

53, 53-1, 53-2

29 48 31

32, 32-1, 32-2

121

4-5

4-4

4-3

4-1

4-2

837

22 23 24

BH FITNESS SB2-PRO

PARTS INFORMATION

www.bhnorthamerica.com Email:[email protected]

Page 2

• FIGURE 2

ITEM # PART # DESCRIPTION QTY

1 SB2P001 SADDLE 1

3 SB2P003 KNOB SPRING 3

4 SB2P004 ADJUSTER KNOB W/WASHER 3

4-1 SB2P004-1 ADJUSTER KNOB WASHER 3

4-2 SB2P004-2 ALLOY BIND CLIP (L) 3

4-3 SB2P004-3 ALLOY BIND CLIP (R) 3

4-4 SB2P004-4 KNOB PLASTIC WASHER 3

4-5 SB2P004-5 KNOB FIXED BOLT 3

5 SB2P005 LEFT CRANK 1

6 SB2P006 OUTER CHAIN GUARD ONLY W/O BOLT 1

7 SB2P007 RIGHT CRANK 1

8 SB2P008 FOOT TUBE NUT 4

9 SB2P009 FOOT TUBE WASHER 4

10 SB2P010 FOOT TUBE BOLT 4

11 SB2P011 PEDALS 2

12 SB2P012 REAR FOOT TUBE 1

13 SB2P013 ADJUSTER LEVEL CUSHION 4

14 SB2P014 END CAP FOR FOOT TUBE 4

15 SB2P015 MOVING WHEEL 2

16 SB2P016 FRONT FOOT TUBE 1

17 SB2P017 BRAKE PAD 1

18 SB2P018 ALLOY BRAKE PAD HOLDER 1

19 SB2P019 SCREW FOR BRACKET 1

20 SB2P020 HOLDING SPRING BRACKET 1

21 SB2P021 HANDLE BAR W/O ADJUSTER LEVER 1

22 SB2P022 CRANK BOLT 2

23 SB2P023 BEARING FOR BB 2

24 SB2P024 BB AXLE 1

25 SB2P025 FLYWHEEL AXLE NUT CAP 2

26 SB2P026 FIXED WHEEL SPROCKET 1

27 SB2P027 FLYWHEEL AXLE W/BEARING 1\4

28 SB2P028 STAINLESS HANDLE BAR POST 1

29 SB2P029 BOTTLE HOLDER 1

30 SB2P030 SCREWS FOR BOTTLE HOLDER 2

31 SB2P031 BRAKE SYSTEM 1

32 SB2P032 CHAIN GUARD BOLT 4

32-1 SB2P032-1 PLASTIC WASHER 4

32-2 SB2P032-2 WASHER 4

33 SB2P033 CHAIN GUARD (FRONT, RIGHT) W/O BOLT 1

35 SB2P035 FENDER FIXED BRACKET 1

BH FITNESS SB2-PRO

PARTS INFORMATION

www.bhnorthamerica.com Email:[email protected]

Page 3

• FIGURE 3

ITEM # PART # DESCRIPTION QTY

36 SB2P036 CHAIN 1

37 SB2P037 NUT OF BB AXLE 2

38 SB2P038 MOVING WHEEL BOLT 2

39 SB2P039 FENDER 1

40 SB2P040 WASHER 1

41 SB2P041 WASHER 1

42 SB2P042 ADJUSTER QUICK RELEASE 1

43 SB2P043 SCREW 4

44 SB2P044 CAP 4

45 SB2P045 WASHER 4

46 SB2P046 SCREW WITH WASHER 2

47 SB2P047 LEFT AXLE COVER W/O BOLT 1

48 SB2P048 BOTTLE 1

49 SB2P049 SCREW WITH WASHER <STAINLESS> 2

50 SB2P050 SEAT SLIDER 1

51 SB2P051 SEAT POST W/#52 RUBBER SLEEVE 1

52 SB2P052 RUBBER SLEEVE 3

53 SB2P053 BOLT FOR OUTER CHAIN GUARD 5

53-1 SB2P053-1 PLASTIC WASHER FOR OUTER CHAIN GUARD 5

53-2 SB2P053-2 WASHER FOR OUTER CHAIN GUARD 5

54 SB2P054 FLYWHEEL SET 1

55 SB2P055 BOLT FOR INNER CHAIN GUARD 2

55-1 SB2P055-1 WASHER FOR INNER CHAIN GUARD 2

56 SB2P056 FLYWHEEL ADJUSTER BOLT 2

57 SB2P057 FENDER FIXED BRACKET (REAR) 1

Hardware ALLEN KEY M4,M6, 1

kit WRENCH 12,13,14,15MM 1

LUBRICANT FOR FLYWHEEL SPROCKET 0

LUBRICANT FOR LEATHER BRAKE PAD 0

LONG LIFE ANTI-RUST OIL FOR FLYWHEEL 0
